Principle of work and design

ECOZHAR

How the furnace works

Principle of operation of the DS stove is designed for heating rooms up to 50 m2 and a volume of 130m3. The door is fitted with heat-resistant glass, which allows you to watch the combustion process on cold winter evenings. The ceramic cord glued around the perimeter of the door ensures tight closing of the stove. The blowpipe is located under the firebox and the regulator is placed on the front wall, under the door. A spacious firebox with dimensions of 650x420 mm and 6 mm thick metal allows to work up to 7 hours without refueling.

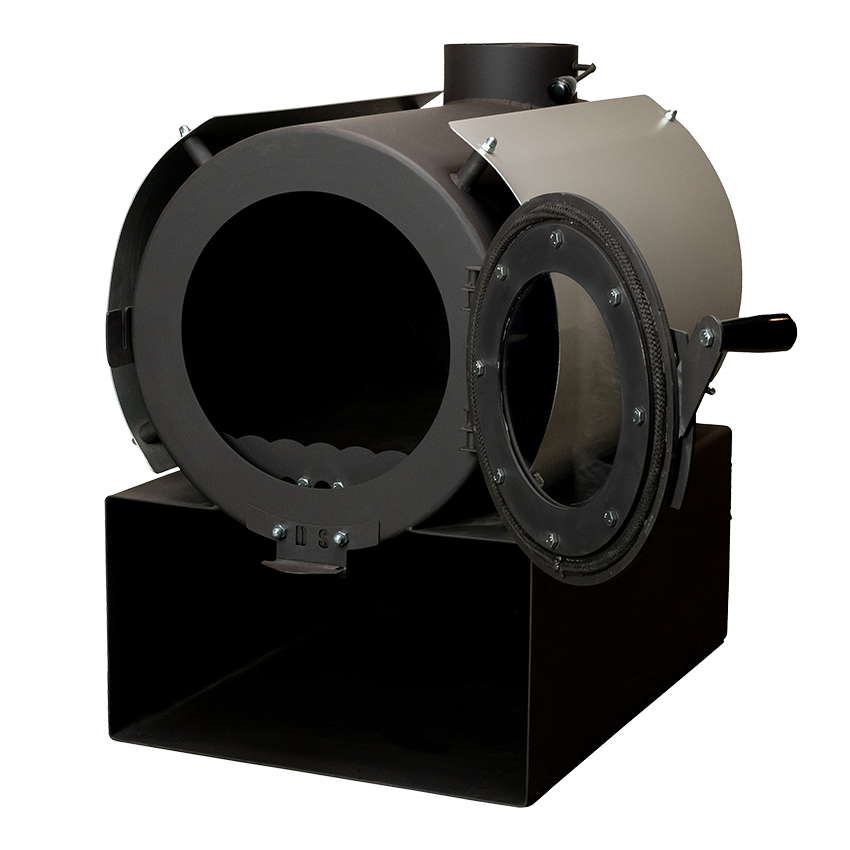

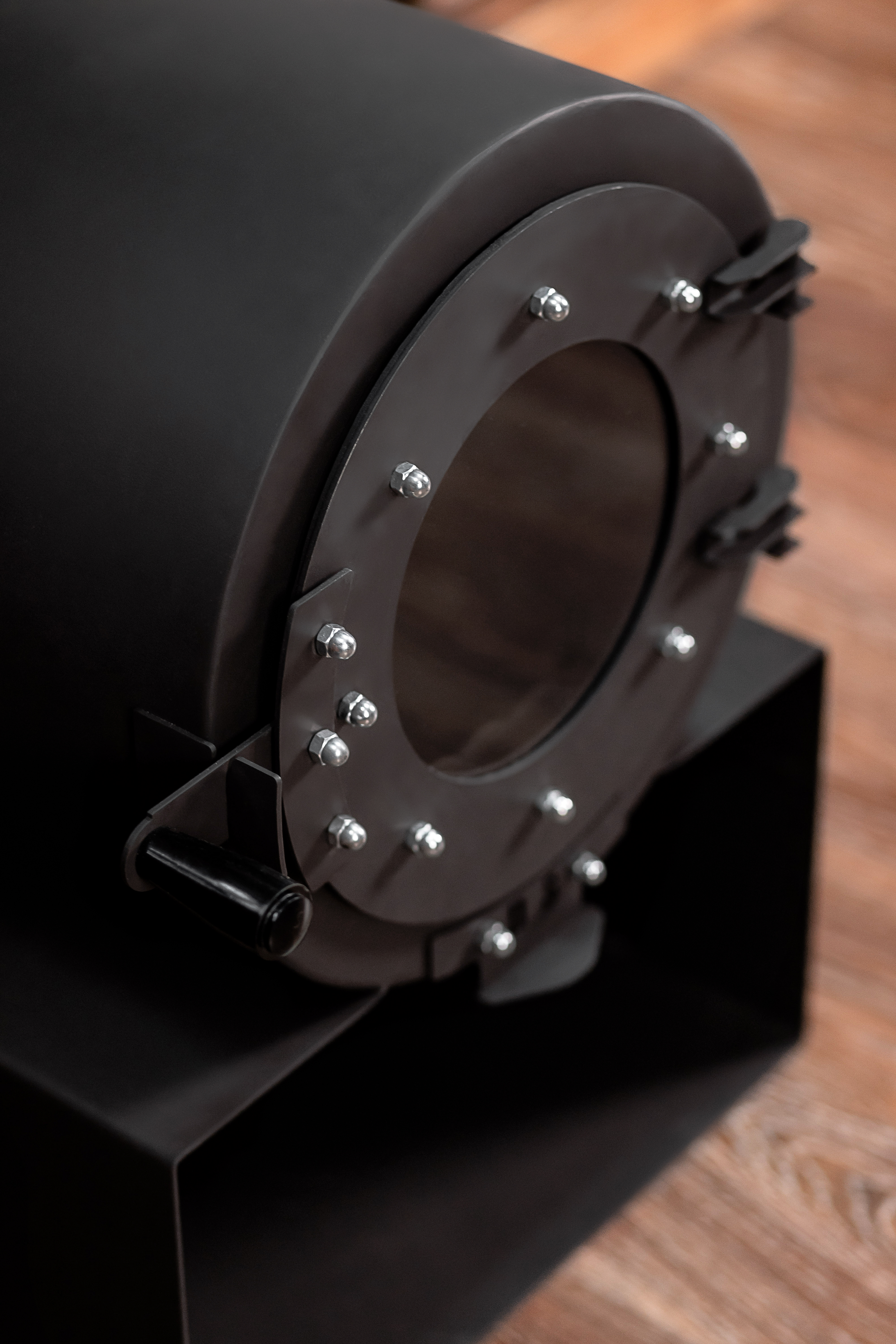

The firebox door and heat-resistant glass

The handle of the firebox door acts as a lock in the closed position. In this position, the door is tightly pressed, and due to the sealing cord along the contour of the door itself, flue gases cannot enter the room. Heat-resistant glass is built into the door, which allows you to observe the combustion process on cold winter evenings.

Woodcutter

The DS Classic stove has a firewood box for convenient storage of firewood. Its sophisticated design allows for neat stacking of firewood, keeping the stove tidy and providing easy access to it. The open structure of the firewood box on the one hand allows air to circulate around the firewood, helping it to stay dry and ready for use.

Blower

A blower valve is installed under the firebox door, and the regulator is located on the front wall, under the door. It allows you to precisely dose the amount of air entering the combustion chamber, thereby optimizing efficiency and increasing the time of fuel combustion on one full load. This damper allows you to precisely adjust the cross-section of the inlet pipe, which allows you to use the stove in two operating modes: combustion mode and smoldering mode.

Firebox thickness

In the DS series furnaces, special emphasis is placed on the thickness of the firebox metal, which is 6 mm. The metal we use guarantees a service life of at least 10 years.

Outer casing

The casing is made of 2 mm thick sheet metal. This thickness was chosen for a reason. First, it is the optimal thickness that allows the structure to be rigid. Secondly, in this area, the metal is less susceptible to temperature effects than the metal of the furnace. Thirdly, if the casing wall is too thick, it will prevent good heat transfer to the room, which will reduce the efficiency of the stove as a whole. There are several color options for the casing - red, silver, gold and copper. You can choose the one you like or choose the option without a casing.

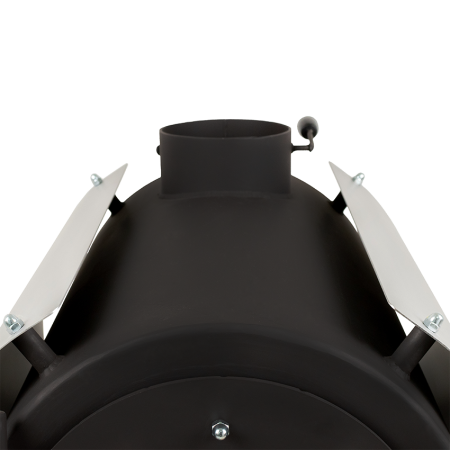

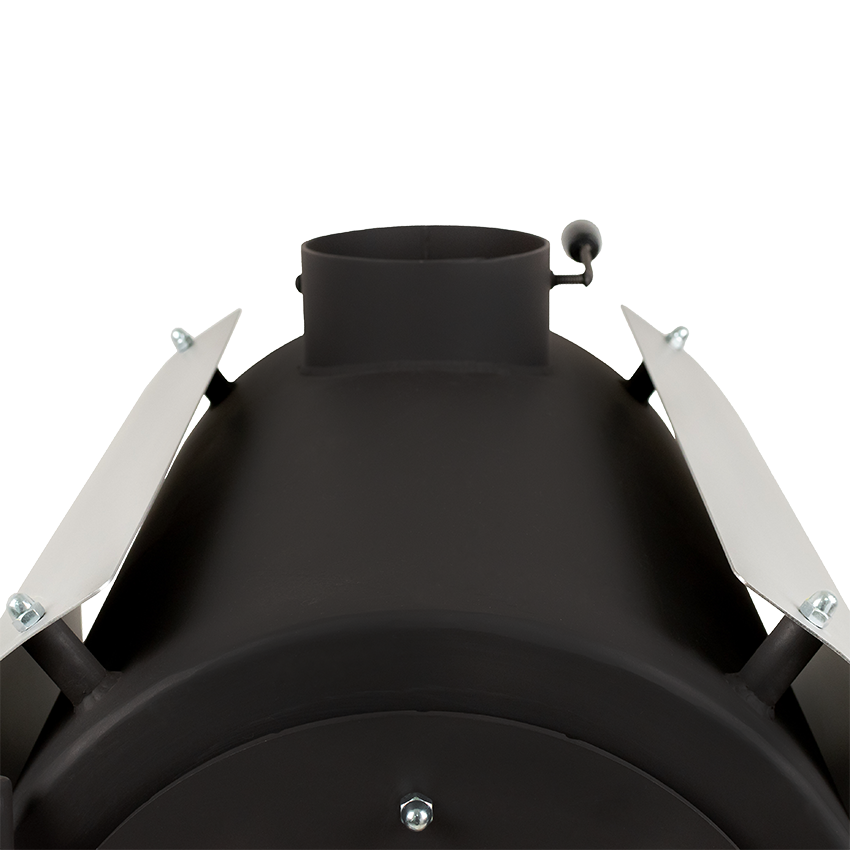

Chimney flue

The chimney flue is available with a diameter of 160 mm. It has a regulator to control the smoke exit into the chimney. Comfortable carbolite handles are resistant to high temperatures and have a stylish look.

Watch a 1.5-minute video about the DS series furnaces

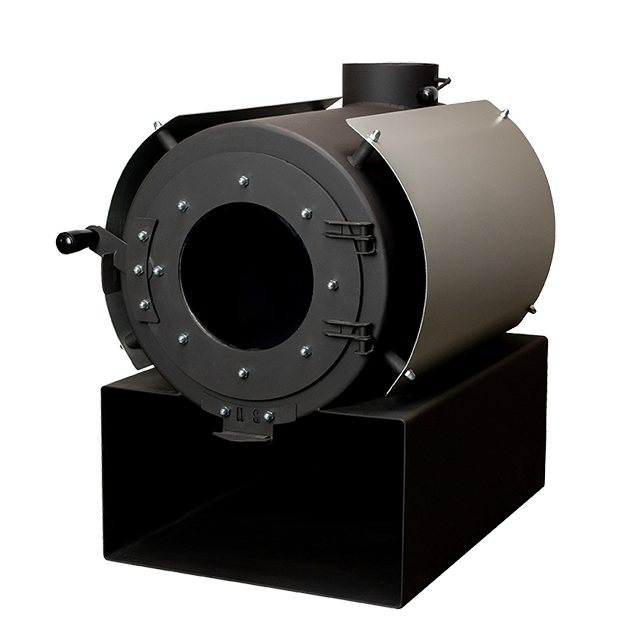

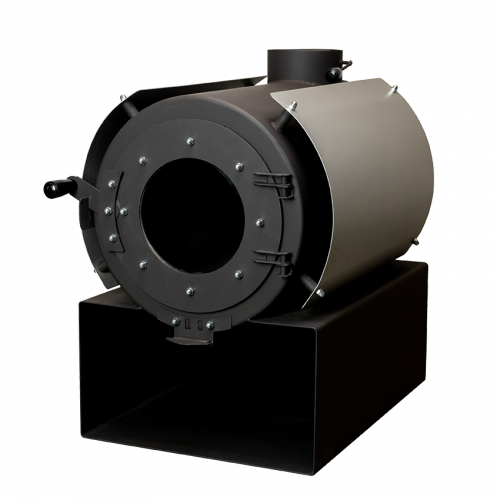

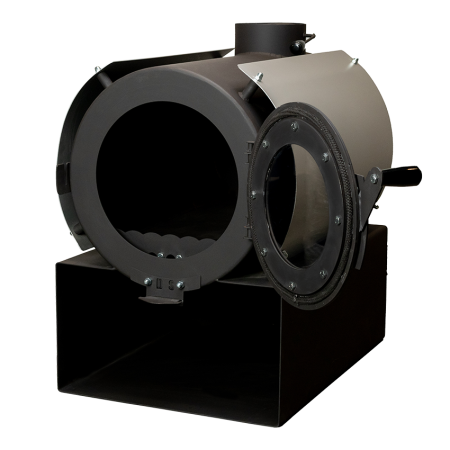

DS Classic heating stove with casing silver

Відкрийте для себе комфорт та тепло! Стильна та функціональна пічка DS призначена для опалення приміщень площею до 80м2 та об’ємом 240м3.

Потужність цієї моделі печі становить 8 кВт, що дозволяє швидко прогрівати великі простори, включаючи виробничі цехи, склади або навіть великі будинки.

Коефіцієнт корисної дії — 81%

Час горіння на одному повному завантаженні дровами – до 6 годин

Діаметр димохідного патрубка – 160 мм

The construction of the DS Classic oven

The furnace furnace is made of a 6 mm thick thick-walled pipe. The casing is made of metal, 1.5 - 2 mm thick. This is enough for the stove to operate efficiently for more than one season and does not interfere with good heat transfer to the room.

The stove operates in two modes: burning and smoldering. The burning mode is used to ignite the stove and quickly warm up the room, and the smoldering mode maintains the set temperature after heating, significantly saving fuel. Switching between the modes and adjusting the intensity of combustion is carried out using two slide dampers on the door and chimney pipes.

There is a plate inside the firebox that helps to cool the gases before they enter the chimney, which increases the service life of the chimney and the stove as a whole. The stove door is equipped with a heat-resistant cord that prevents smoke from escaping into the room.

Each series and model of our furnaces is developed by a designer to ensure maximum efficiency and productivity. We have mass production of furnaces, which guarantees the quality of each product. And all models of stoves have a certificate of conformity.

We are confident in the quality of our products and that you will be satisfied.

Our customers' feedback serves as confirmation for both us and you.

Below is only a small part of them.

The thickness of the furnace

6 mm

Heating volume

240 m3

Heating area

80 m2

Firebox size

650х420 mm
